1000kva generator silent container diesel generator set

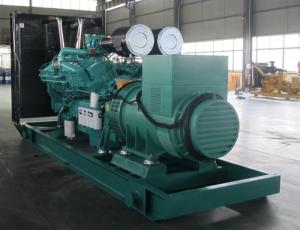

1000kva cummins Diesel Generating Set Data
MODEL:QS-C1100
Standby Power: 50Hz 880KW / 1100KVA
Prime Power: 50Hz 800KW / 1000KVA

Generator Ratings
Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable
load application, in accordance with ISO8528; A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power
for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

CUMMINS ENGINE DATA
Manufacturer / Model: KTA38-G5, 4-cycle
Air Intake System: Turbo, Air/Water cooling
Fuel System: PT type fuel pump, EFC
Cylinder Arrangement: 12 in “V”
Displacement: 37.8L
Bore and Stroke: 159*159 mm
Compression Ratio: 13.9:1
Rated RPM: 1500rpm
Max. Standby Power at Rated RPM: 970KW/1319HP
Governor Type: Electronic

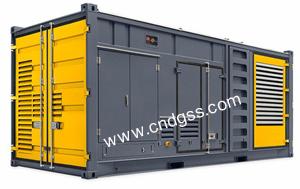

1000kva cummins silent contrainer generator Dimension & Weight
Overall Size:6058 mm ×2438 mm ×2591 mm
Weight:13000kg
